Call us at
(+91) 8800090671
Email us at
Call us at
Email us at
HF PCL Series is single pack reaction ink developed for insert forming on Polycarbonate. The ink can produced good adhesion, flixibility and heat resistance suitable for forming process
| Ink type | single pack polyester ink |
| Finish Gloss | PMMA, PC, ABS, etc |
| Usage | Pattern A 1st layer HF PCL 710 black : T922 = 100 : 20 (60° x 10-30min) 2nd layer HF PCL 125 Pure White : Y3411 = 100 : 20 (60° x 10-30min) 3rd layer HF PCL 800 Medium Clear : Y3411 = 100 : 20 (60° x 3min) Pattern B 1st layer HF PCL 710 black : T922 = 100 : 20 (60° x 10-30min) 2nd layer HF PCL 710 black : Y3411 = 100 : 20 (60° x 30min) |
| Solvent | T-922 (standard solvent) |
| Wash-up | T-31 or T-40 |
| Screen mesh | Tetron or Nylon 200~300 are recommended |
| Drying | 80°C x 30min is recommended |

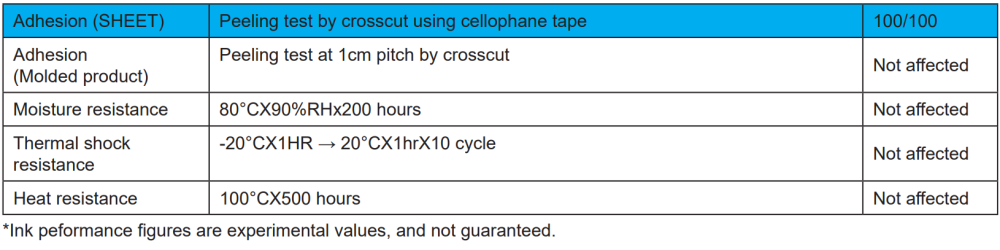

| Material | Polycarbonate plate |
| Ink | HF PCL 120, 710 |
| Curing | 30 minutes in 60°C, followed by 1 day in room temperature. |
HF SKY-series is a family of two-part reaction inks that is compatable with IMD/IML Application.
| Type | Two part thermal curing ink. |
| Usage | PMMA PC ABS etc. |
| Feature | Gloss finish |
| Diluent | Standard T-980 |
| Mixing ratios | HF SKY 120 White a hardner : A Hardener = 100 : 3 HF SKY 710 : A HARDENER = 100 : 3-10 *if high stretchability is required, less ratio of hardener is better. If there is no requirement of stretchability, high ratio of hardener is better. |
| Washing solvent | T-15 |
| Drying time | 80° x 5min (Temporary drying) 80° x 1-2hours (Final drying after print binder) Example of drying for each layer 1st HF SKY 710 (80° x 5min) 2nd HF SKY 710 (80° x 5min) 3rd HF SKY 710 (80° x 5min) 4th HF SKY 710 (80° x 5min) 5th JT50 Binder (80° x 2hours) Longer drying time give higher heat and wash out resistance |
| Material | Polycarbonate plate |
| Ink | HF SKY 120, 710 |
| Curing | 30 minutes in 60°C, followed by 1 day in room temperature. |
The HF HSD series is a family of two-part reaction type inks. They can be widely applied to various materials, and offer excellent printability. Having a flexible ink layer, they can also be applied in in-mold decoration. This series of inks is halogen-free and environment-friendly.
| Ink type | Polyacrylate-based two-part isocyanate hardener-type. |
| Usage | Excellent adhesion on various materials, suitable for materials such as processed PP, coated surfaces, ABS, PMMA, hard-coated PMMA, PC, processed PET, and aluminium. |
| Features | • Gloss Finish • Widely applicable, demonstrates excellent adhesion to most substrates. • Excellent moisture and solvent resistance. • Halogen-free |
| Diluent | • Standard solvent: T-926 • Slow-dry solvent: T-927 • Retarder: T-980 |
| Mixing ratio | • Ink: D-Hardener = 100:10) • Gel phenomena may occur after 6-8 hours of usage at room temperature after mixing, leading to reduced physical performance. |
| Washup | T-15/T-31 |
| Screen | 200-300 mesh/inch polyester or nylon screens recommended. |
| Drying time | • Sets to touch-dry in 40 minutes at 25°C. • Hard-dries in 1 week (air-drying) or 30 minutes at 80°C+2 days air-drying. • When applied to metal substrates, thermal curing for 20 minutes at 120-150°C is required for optimal results. |
| Notes | • When used on electroplated film, dilute with solutions T-900 or T-910 to prevent solvent attacks to the substrate. (Verification is advised based on substrate differences) • D-Hardener is extremely sensitive to moisture. Use as soon as possible after opening. • Bubbles and/ or pin-holes may form based on printing conditions. Add 1-2% (by weight) of CARE 13 as needed. • Add 3-5% of CARE 73 to enhance adhesion to glass and resistance to boiling and alcohol. |

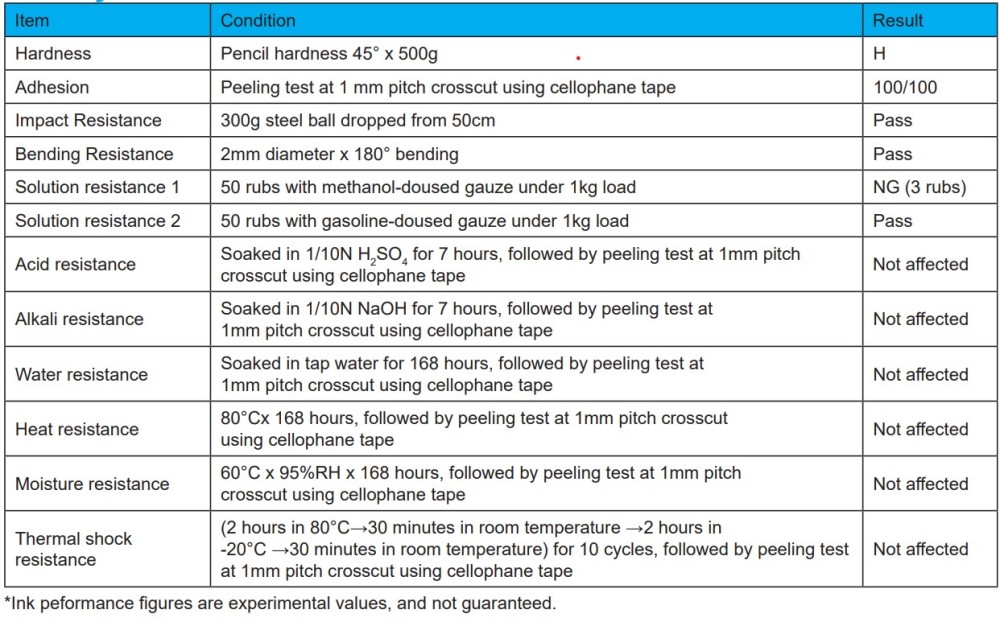

| Material | Polycarbonate plate |
| Ink | HF HSD 120, 710 |
| Curing | 30 minutes in 60°C, followed by 1 day in room temperature. |
As a partner who thinks about the future and colors the moment, we will realize our value contribution to society.
09 to 17.30 (Except Sunday & holiday)
